Description: Ultrafiltration UF System UF System Industrial PVDF UF System

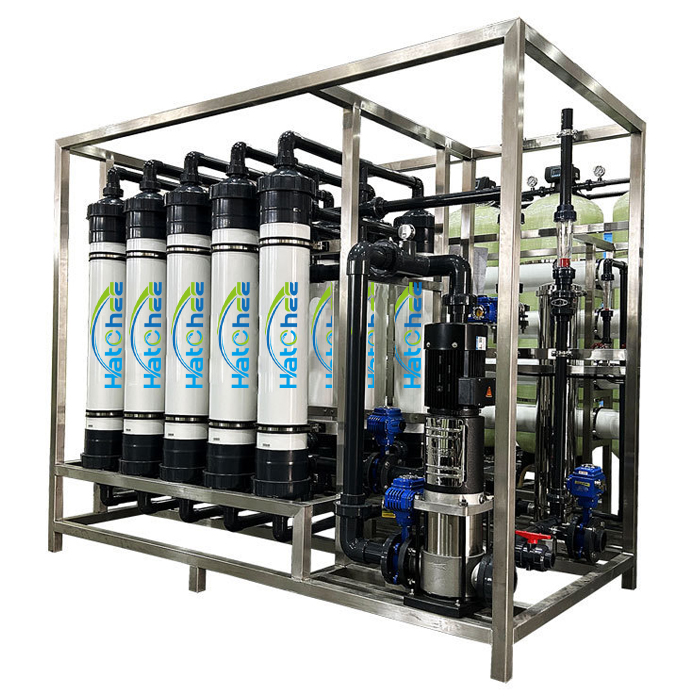

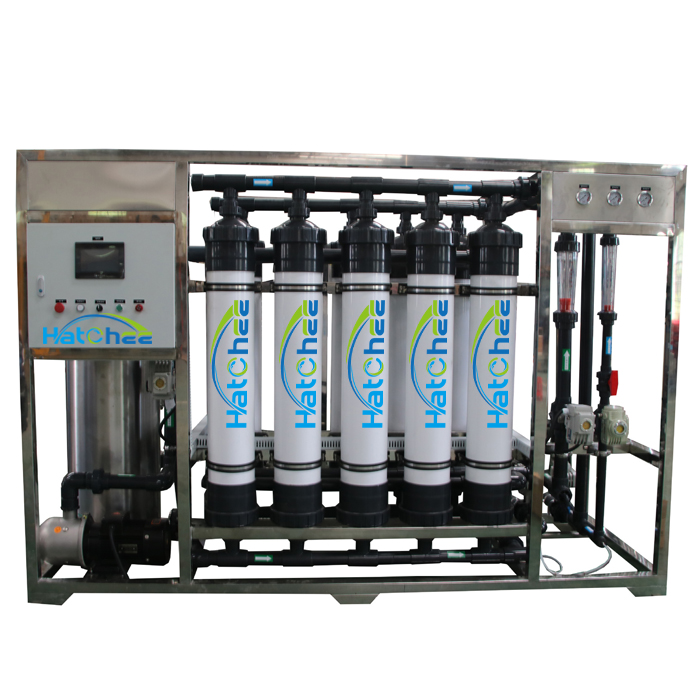

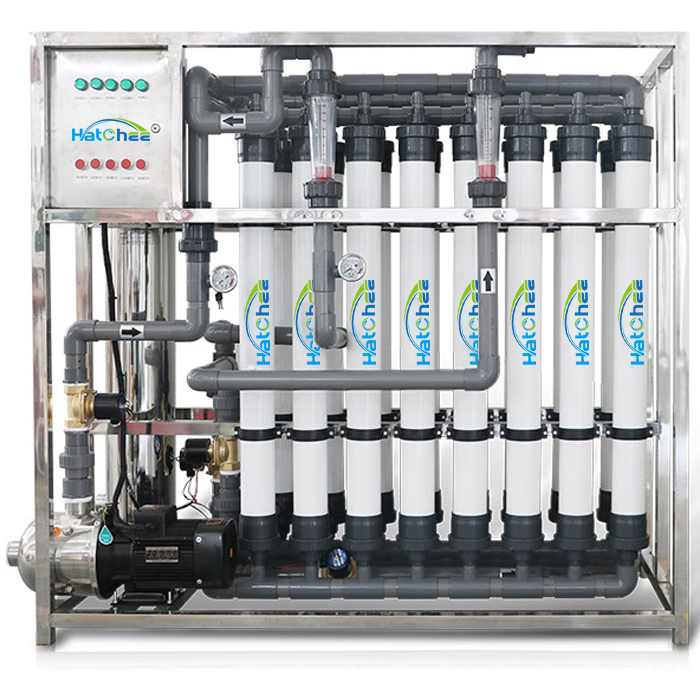

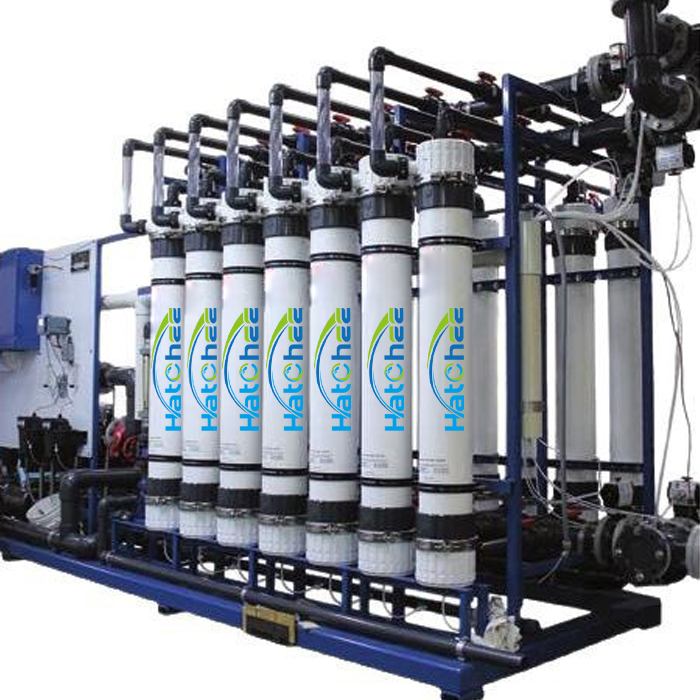

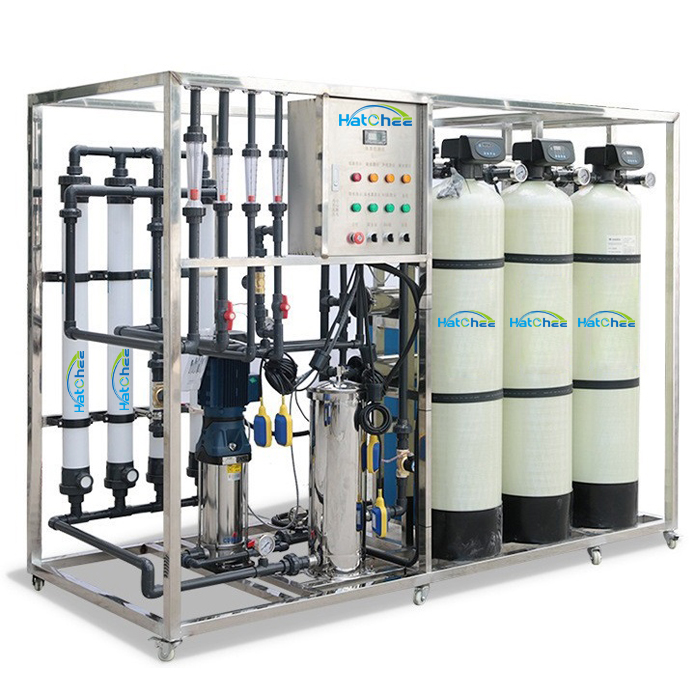

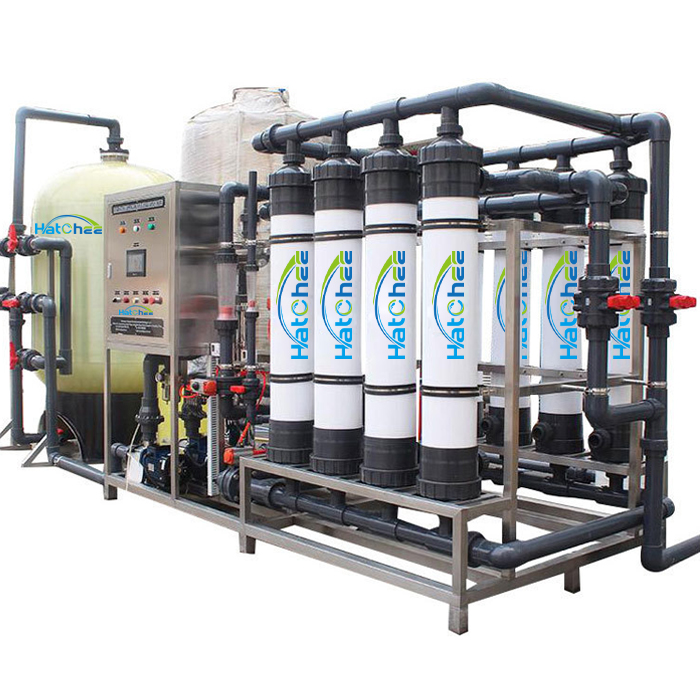

Ultrafiltration UF System
Ultrafiltration systems utilize hollow membrane fibers to eliminate suspended solids, bacteria, viruses, and pathogens from the feed water. Pumps send the treated water through microscopic pores, which act as a physical barrier that only allows filtrates to pass through them. Ultrafiltration strainers are used next to remove solids such as weeds and plastics from the filtered water before it enters the UF system. Ultrafiltration plants have been extremely useful in water and wastewater treatment by continuously providing excellent results. After UF treatment, the water can be sent to a reverse osmosis system for further purification or can be used supplied for immediate public usage.
Most regions around the world utilize ultrafiltration plants to maintain sufficient preservation of clean water for public consumption. The water filtration efficiency achieved by UF systems are around 250 times greater than conventional media filtration systems. These plants are also very suitable to many industries that require ultra pure water pushed out from these factories. The ultrafiltration membranes used in these plants are enforced to lower turbidity, or utilize as pretreatment to maintain the effectiveness of your reverse osmosis membrane. These plants are generally considered to be of low cost, easy to operate, carry no contaminate residue, and have considerably high recovery ratio.
Ultrafiltration is a pressure-driven membrane separation process that removes suspended or particulate matter (including colloids & silt) from water. Ultrafiltration is more reliable than conventional multimedia filtration that removes particles of 10 microns in size or larger. Ultrafiltration also efficiently removes bacteria and most viruses.
Ultrafiltration systems eliminate the need for clarifiers and multimedia filters. Standard design is based on a UF module with outside-in flow configuration which allows for less plugging, higher solids loading, higher flow area and easy cleaning.

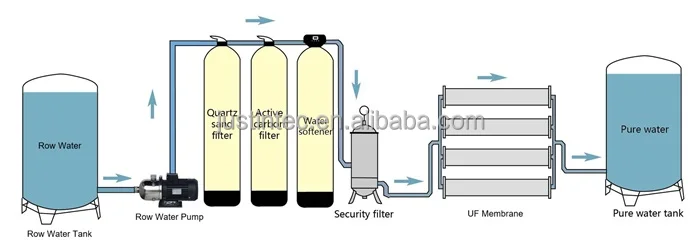

Ultrafiltration UF System Schematic Diagram
Ultrafiltration UF System Operation Specifications
Temperature 25°C (max. 40°C)
TOC < 10 max. < 40 mg/L
pH 6-9 (2-11 cleaning)
TSS < 50 max. < 100 mg/L
Backwash frequency 20-60 minutes
Turbidity < 50 max. <300 NTU
Cl2 <0.5 ppm (2,000 cleaning)
COD < 20 max. < 60 mg/LM
Max oil & grease: 2mg/L

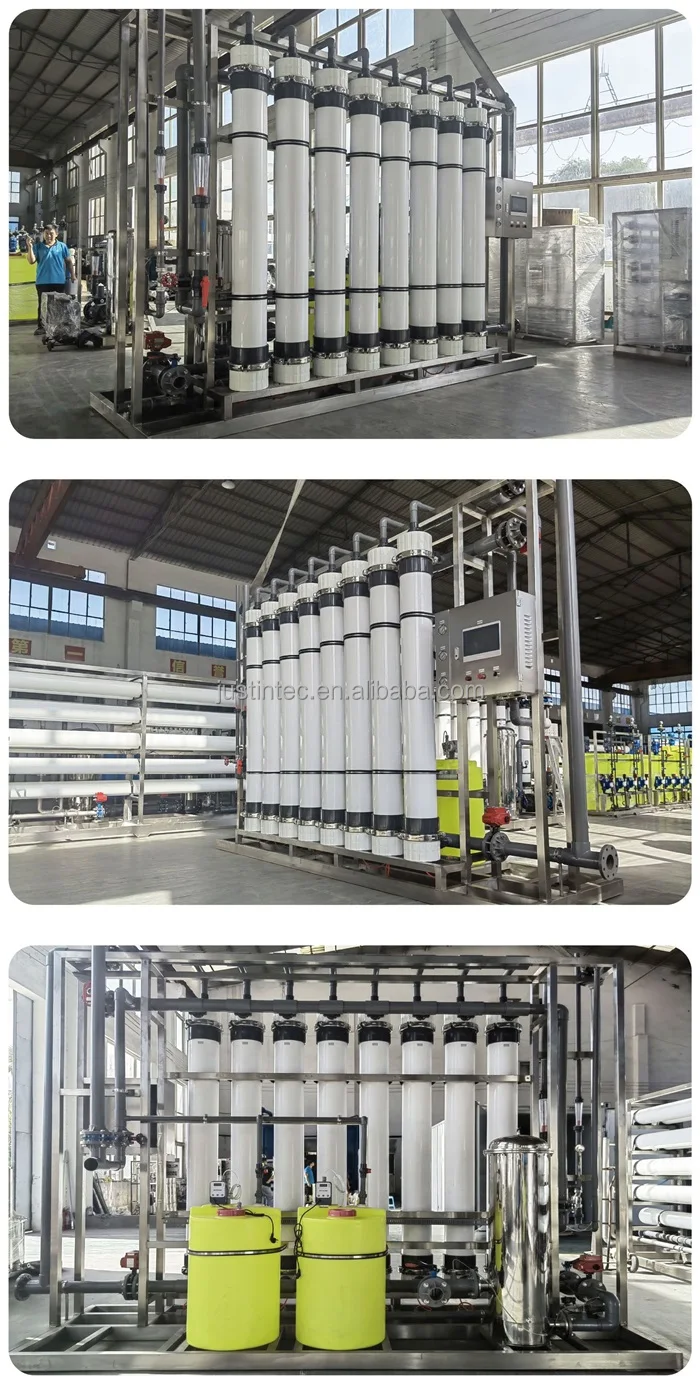

Industrial Ultrafiltration UF System
|
Model No. |
Capacity - Reclaimed Water |
Capacity - Surface Water |
Qty of |
||
|
GPD |
TPD |
GPD |
TPD |
||
|
UF-1 |
10,080 |
38 |
16,992 |
64 |
1 |
|
UF-2 |
20,160 |
76 |
33,984 |
129 |
2 |
|
UF-3 |
30,240 |
114 |
50,976 |
193 |
3 |
|
UF-4 |
40,320 |
153 |
67,968 |
257 |
4 |
|
UF-6 |
60,480 |
229 |
101,952 |
386 |
6 |
|
UF-8 |
80,640 |
305 |
135,936 |
515 |
8 |
|
UF-10 |
100,800 |
382 |
169,920 |
643 |
10 |
|
UF-12 |
120,960 |
458 |
203,904 |
772 |
12 |
|
UF-14 |
141,120 |
534 |
237,888 |
901 |
14 |
|
UF-16 |
161,280 |
611 |
271,872 |
1,029 |
16 |
|
UF-18 |
181,440 |
687 |
305,856 |
1,158 |
18 |
|
UF-20 |
201,600 |
763 |
339,840 |
1,286 |
20 |
|
UF-24 |
241,920 |
916 |
407,808 |
1,544 |
24 |
|
UF-30 |
302,400 |
1,145 |
509,760 |
1,930 |
30 |
|
UF-32 |
322,560 |
1,221 |
543,744 |
2,058 |
32 |
|
UF-40 |
403,200 |
1,526 |
679,680 |
2,573 |
40 |
|
Model No. |
Capacity - Seawater |
Capacity - Ground Water |
Qty of |
||
|
GPD |
TPD |
GPD |
TPD |
||
|
UF-1 |
23,760 |
90 |
27,360 |
104 |
1 |
|
UF-2 |
47,520 |
180 |
54,720 |
207 |
2 |
|
UF-3 |
71,280 |
270 |
82,080 |
311 |
3 |
|
UF-4 |
95,040 |
360 |
109,440 |
414 |
4 |
|
UF-6 |
142,560 |
540 |
164,160 |
621 |
6 |
|
UF-8 |
190,080 |
720 |
218,880 |
829 |
8 |
|
UF-10 |
237,600 |
899 |
273,600 |
1,036 |
10 |
|
UF-12 |
285,120 |
1,079 |
328,320 |
1,243 |
12 |
|
UF-14 |
332,640 |
1,259 |
383,040 |
1,450 |
14 |
|
UF-16 |
380,160 |
1,439 |
437,760 |
1,657 |
16 |
|
UF-18 |
427,680 |
1,619 |
492,480 |
1,864 |
18 |
|
UF-20 |
475,200 |
1,799 |
547,200 |
2,071 |
20 |
|
UF-24 |
570,240 |
2,159 |
656,640 |
2,486 |
24 |
|
UF-30 |
712,800 |
2,698 |
820,800 |
3,107 |
30 |
|
UF-32 |
760,320 |
2,878 |
875,520 |
3,314 |
32 |
|
UF-40 |
950,400 |
3,598 |
1,094,400 |
4,143 |
40 |
Applications
|
Food and Beverage Processing RO Pre-Treatment Wastewater Treatment Drinking Water Treatment Reclaimed Water Treatment .... |
Water Reuse Water Recycling Water Reclamation Process Separation or Recovery Irrigation Industry ... |
Reclaimed Water Surface Water Seawater Ground Water Grey Water Treatment ... |
