Fiberglass FRP Membrane Vessel

Description: Fiberglass FRP Membrane Vessel

inquiry

Product Description

Fiberglass FRP Membrane Vessel

FRP Membrane vessel is made mainly of fiberglass reinforced plastics,stainless steel,engineering plastics etc.The working pressure range is usually from 300psi ( 2.1Mpa ) to 2000psi (13.5Mpa ),and the system in middle and high pressure adopts mainly FRP vessel.For the FRP vessel with ROM,fabric winding processing method can be adopted,so that the vessel is at the best state under working pressure,giving full play to the structural performance of the vessel.
We own two series: HC Series and SC Series

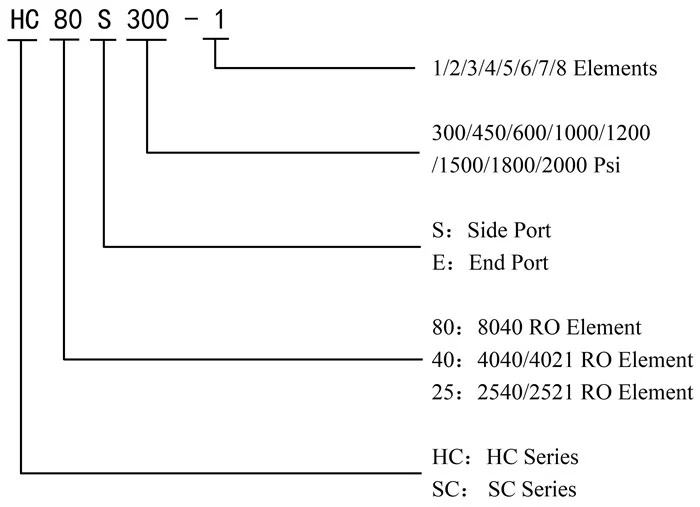

FRP Membrane Vessels Naming Rule

Specification

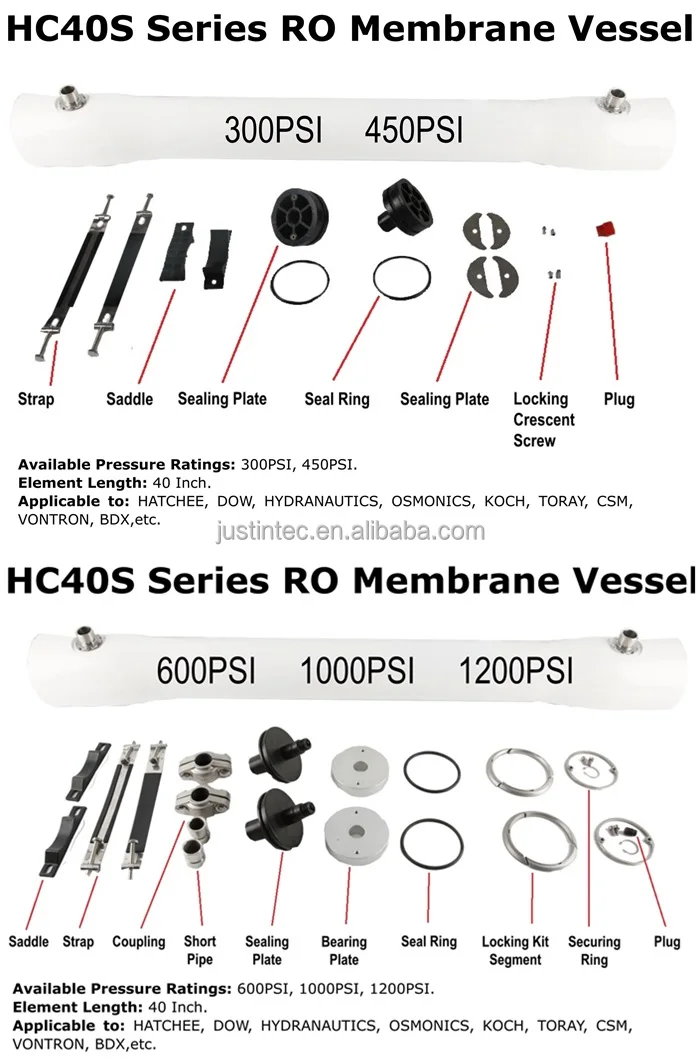

HC Series FRP RO Membrane Vessel

HC Series FRP membrane vessel, certified by ASME and CE, can withstand more than 100,000 times cyclic test and burst pressure test 6 times of design pressure

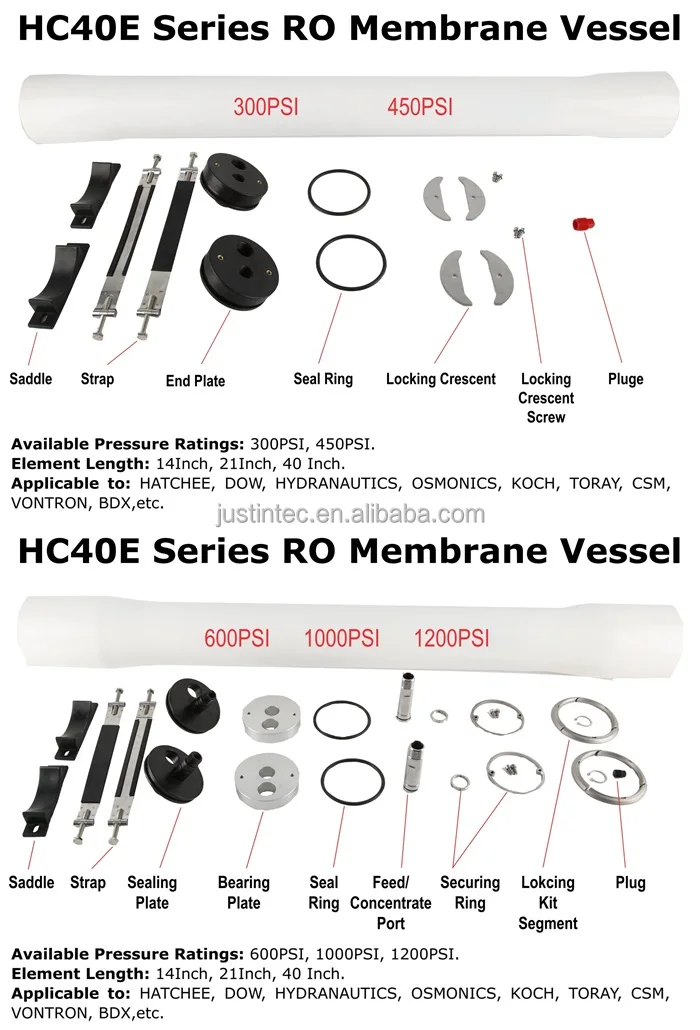

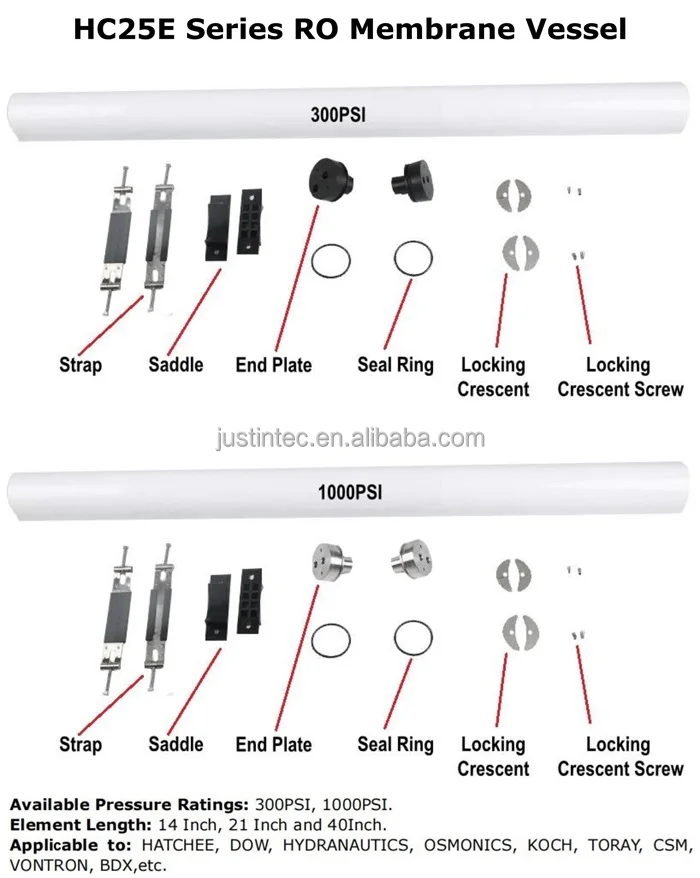

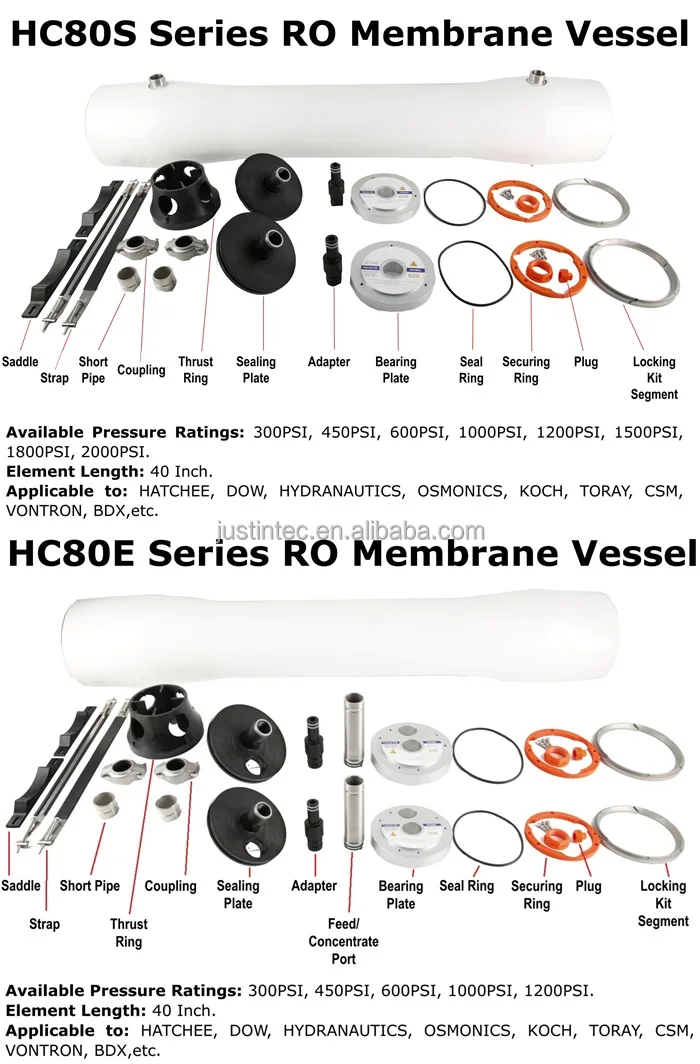

HC Series	2.5" End Port	4" End Port	4" Side Port	8" End Port	8" Side Port
Model	HC2514E HC2521E HC2540E	HC4021E HC40E-1 HC40E-2 HC40E-3 HC40E-4	HC40S-1 HC40S-2 HC40S-3 HC40S-4	HC80E-1 HC80E-2 HC80E-3 HC80E-4 HC80E-5 HC80E-6 HC80E-7 HC80E-8	HC80S-1 HC80S-2 HC80S-3 HC80S-4 HC80S-5 HC80S-6 HC80S-7 HC80S-8
Design Pressure (Psi)	300/1000	300/450/600/1000/1200		300/450/600/ 1000/1200	300/450/600/1000/1200 /1500/1800/2000
Cyclic Test	100000 times
Burst Pressure	6 times
Elements Quantity	2514, 2521, 2540	4021,1,2,3,4		1,2,3,4,5,6,7
Operating pH Range	pH 3-11
Operating Temperature	-10℃-66℃(14°F – 150°F)
Feed/Concentration Port	1/4"	3/4"	1"	1.5"	1.5"/2"/2.5"/3"
Permeate Port	1/4"	1/2"	300/450Psi: 3/4" 600/1000/1200Psi: 1/2"	1"	1"
Side Port Quantity	/	/	Standard: 2 pcs Range: 2,3,4 pcs	/	Standard: 2 pcs (1.5") Range: 2,3,4,5,6,7,8 pcs

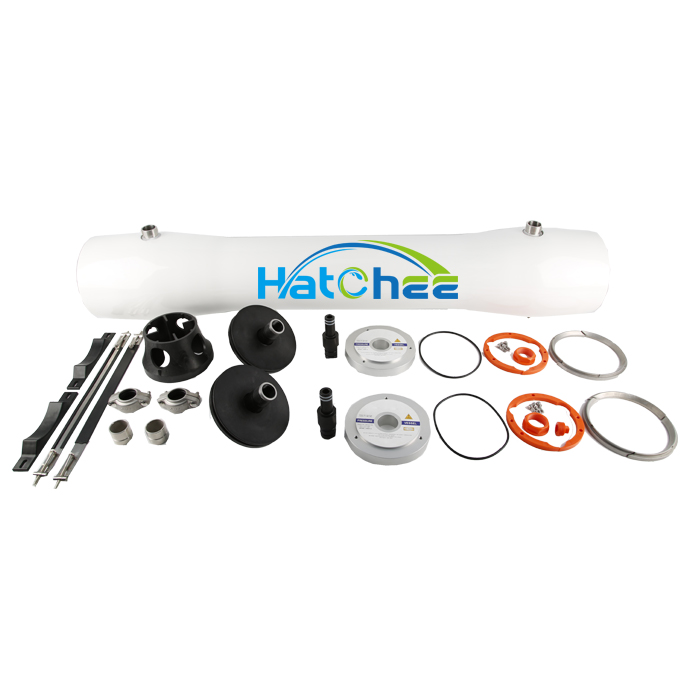

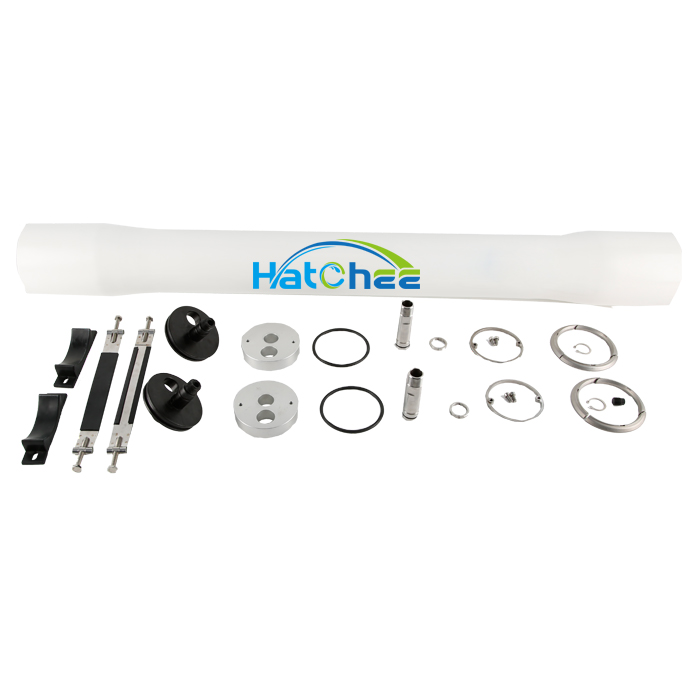

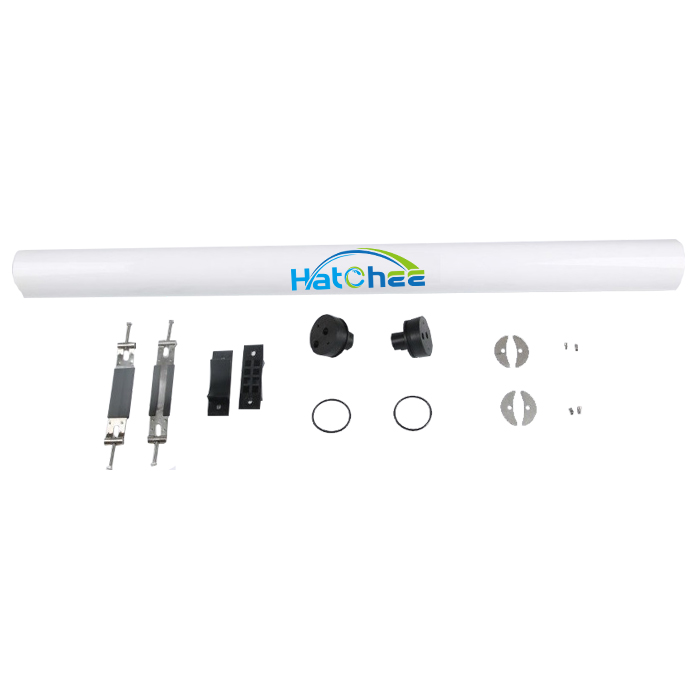

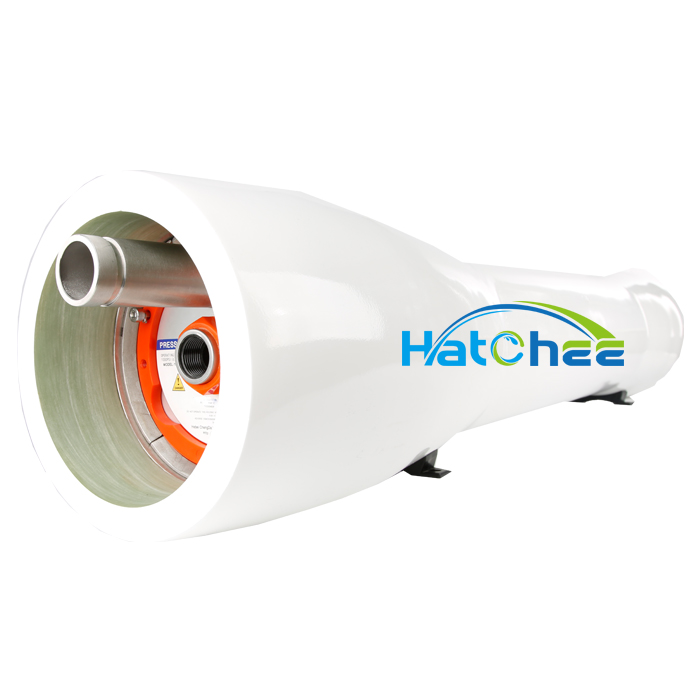

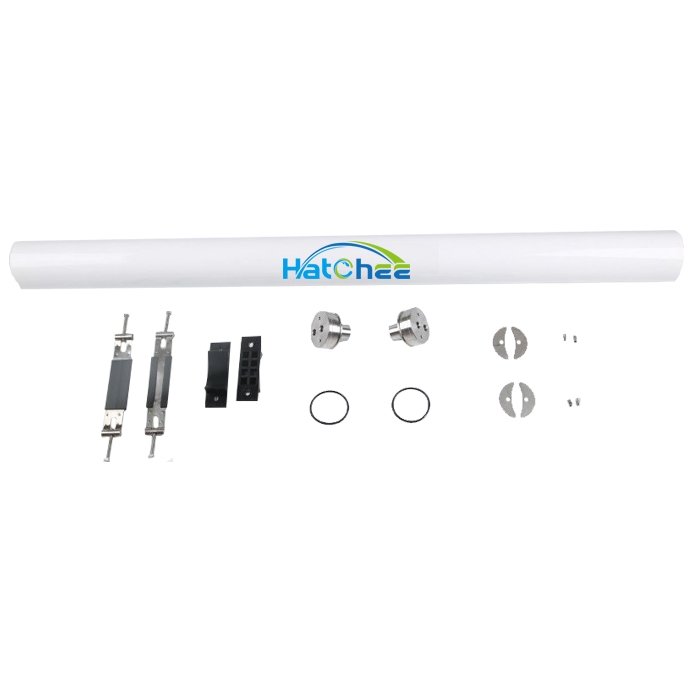

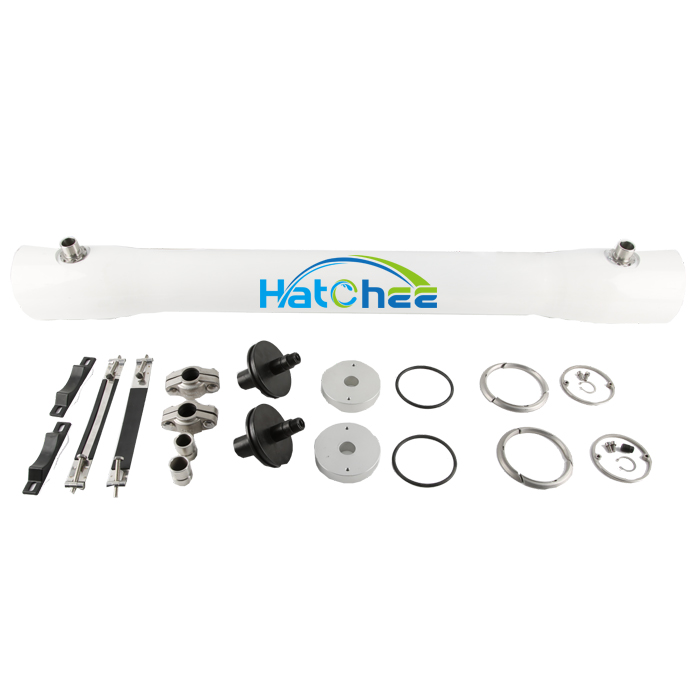

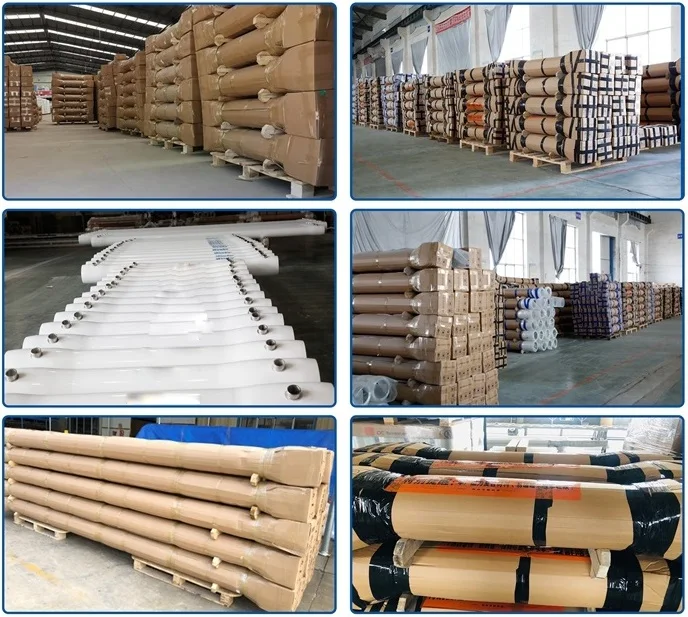

Product Show

SC Series FRP RO Membrane Vessel

SC Series FRP membrane vessel, certified by ISO 9001, ISO 14001, OHSAS 18001, CE certification and obtained hygiene licence., can withstand more than 60,000 times cyclic test and burst pressure test 4 times of design pressure

SC Series	4" End Port	8" Side Port
Model	SC40E300-1 SC40E300-2	SC80S300-1 SC80S300-2 SC80S300-3 SC80S300-4 SC80S300-5 SC80S300-6 SC80S300-7 SC80S300-8	SC80S450-1 SC80S450-2 SC80S450-3 SC80S450-4 SC80S450-5 SC80S450-6 SC80S450-7 SC80S450-8
Design Pressure (Psi)	300	300/450
Cyclic Test	60000 times
Burst Pressure	4 times
Elements Quantity	1,2	1,2,3,4,5,6,7,8
Operating pH Range	pH 3-11
Operating Temperature	-10℃-66℃(14°F – 150°F)
Feed/Concentration Port	3/4"	1"
Permeate Port	1/2"	1"
