Description: Industrial Brackish Water Purification RO System
Industrial and Commercial Brackish Water Reverse Osmosis Systems BWRO
Justin Technology builds the complete Brackish Water Reverse Osmosis systems, as well as stock all major components for your maintenance needs. Controls, replacement cartridge filters, high pressure pumps and reverse osmosis membranes. Reverse Osmosis (RO) technology, also known as hyper filtration, is used in every one of our stock and custom-made reverse osmosis water treatment systems to purify water by removing salts, contaminants and other impurities. Our full line of Brackish Water Reverse Osmosis Systems are available with a wide range of capacities (up to one million gallon per day) and TDS (up to five thousand parts per million total dissolved solids). In this way our systems set the standards in the water treatment industry. Our friendly knowledgeable engineers and staff are always on hand to help and answer any questions or concerns you may have. We design each of our systems to be plug-and play, with all membranes, pumps, controls, manuals, filters, operating, and piping installed and ready to go.
Justin Technology’s Commercial and Industrial Brackish reverse osmosis system is a compact and energy-efficient Commercial and Industrial Brackish RO unit, designed ideally for tap, brackish and drinking water treatment applications. Our small Commercial and Industrial Brackish reverse osmosis equipment is capable of reaching incredibly high recovery rates.Brackish Water RO units are used all over the world in many regions where clean potable water is scarce. It is ideal for food and beverage industries, potable drinking water, hospitals, agriculture, hotels and resorts, water bottling & ice making, pharmaceuticals and more.
As a global supplier, we offer a full line of pre-engineered and custom reverse osmosis systems for Commercial and Industrial Brackish use, ranging from 600 to 173,000 GPD. These Commercial and Industrial Brackish RO systems produce high-quality water at a very low cost, all of which are engineered using the most advanced technology for accurate and customized solutions.

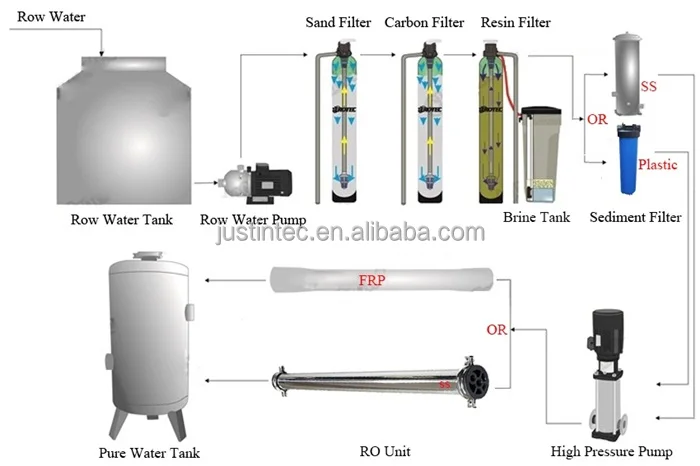

Brackish Water Reverse Osmosis System Schematic Diagram
Brackish Water Reverse Osmosis System Buying Guide
Flow rate (GPD, m3/day, LPH, etc.)
Feed water TDS and water analysis
Iron and manganese must be removed before the water enters reverse osmosis unit
TSS must be removed before entering the RO system
SDI for feed water must be less than 3
Water should be free from oil and grease
Chlorine must be removed
Available voltage, phase, and frequency
Dimensions of projected area where Industrial RO System will be installed
Brackish Water Reverse Osmosis System Operation Specifications
Max. feed water temperature: 42°C
Equipment upgrade for TDS up to 5,000 ppm
Hydrogen Sulfide H2S must be removed
Max. Silica tolerance: 60 ppm at 50% recovery
Feed water TDS: 0-5,000 ppm
Operating pressure: 150 to 250 psi
pH tolerance range: 3-11
Max. Iron content: 0.05 ppm
Feed water pressure: 20 to 80 psi
Hardness over 1 GPG requires water softener or antiscalant
Turbidity should be removed
Operate at higher TDS by lowering recovery
Commercial Brackish Water Reverse Osmosis Systems
|
Photo |
Model Number |
Permeate Flow Rate |
Membrane |
||||
|
GPD |
M³/D |
LPH |
Size |
Qty. |
|||
|
|
TWRO-100-E |
TW-0.6K-125 |
600 |
2 |
100 |
2540 |
1 |
|
TWRO-200-E |
TW-1.2K-225 |
1,200 |
5 |
200 |
2540 |
2 |
|
|
TWRO-250-E |
TW-1.5K-140 |
1,500 |
6 |
250 |
4040 |
1 |
|
|
TWRO-500-E |
TW-3.0K-240 |
3,000 |
11 |
500 |
4040 |
2 |
|
Industrial and Commercial Brackish Water Reverse Osmosis Systems
|
Photo |
Model Number |
Permeate Flow Rate |
Membrane |
||||
|
GPD |
M³/D |
LPH |
Size |
Qty. |
|||
|
|
TWRO-100 |
TW-0.6K-125 |
600 |
2 |
100 |
2540 |
1 |
|
TWRO-200 |
TW-1.2K-225 |
1,200 |
5 |
200 |
2540 |
2 |
|
|
TWRO-300 |
TW-1.8K-325 |
1,800 |
7 |
300 |
2540 |
3 |
|
|
TWRO-250 |
TW-1.5K-140 |
1,500 |
6 |
250 |
4040 |
1 |
|
|
TWRO-500 |
TW-3.0K-240 |
3,000 |
11 |
500 |
4040 |
2 |
|
|
TWRO-750 |
TW-4.5K-340 |
4,500 |
17 |
750 |
4040 |
3 |
|
|
TWRO-1000 |
TW-6.0K-440 |
6,000 |
23 |
1,000 |
4040 |
4 |
|
|
TWRO-1250 |
TW-7.5K-540 |
7,500 |
28 |
1,250 |
4040 |
5 |
|
|
TWRO-1500 |
TW-9.0K-640 |
9,000 |
34 |
1,500 |
4040 |
6 |
|
|
TWRO-2000 |
TW-12.0K-840 |
12,000 |
45 |
2,000 |
4040 |
8 |
|
|
TWRO-2500 |
TW-15.0K-1040 |
15,000 |
57 |
2,500 |
4040 |
10 |
|
|
TWRO-3000 |
TW-18.0K-1240 |
18,000 |
68 |
3,000 |
4040 |
12 |
|
|
TWRO-2250 |
TW-13K-3340 |
13,000 |
49 |
2,250 |
4040 |
9 |
|
|
TWRO-2500 |
TW-15K-5240 |
15,000 |
57 |
2,500 |
4040 |
10 |
|
|
TWRO-3000 |
TW-18K-4340 |
18,000 |
68 |
3,000 |
4040 |
12 |
|
|
TWRO-3750 |
TW-22K-5340 |
22,000 |
83 |
3,750 |
4040 |
15 |
|
|
TWRO-4000 |
TW-24K-8240 |
24,000 |
91 |
4,000 |
4040 |
16 |
|
|
TWRO-4500 |
TW-27K-6340 |
27,000 |
102 |
4,500 |
4040 |
18 |
|
|
TWRO-5250 |
TW-32K-7340 |
32,000 |
121 |
5,250 |
4040 |
21 |
|
|
TWRO-3000 |
TW-21K-1380 |
21,000 |
79 |
3,000 |
8040 |
3 |
|
|
TWRO-4000 |
TW-28K-1480 |
28,000 |
106 |
4,000 |
8040 |
4 |
|
|
TWRO-5000 |
TW-36K-1580 |
36,000 |
136 |
5,000 |
8040 |
5 |
|
|
TWRO-6000 |
TW-43K-1680 |
43,000 |
163 |
6,000 |
8040 |
6 |
|
|
TWRO-8000 |
TW-57K-2480 |
57,000 |
216 |
8,000 |
8040 |
8 |
|
|
TWRO-10000 |
TW-72K-2580 |
72,000 |
273 |
10,000 |
8040 |
10 |
|
|
TWRO-12000 |
TW-87K-3480 |
87,000 |
329 |
12,000 |
8040 |
12 |
|
|
TWRO-15000 |
TW-108K-3580 |
108000 |
409 |
15,000 |
8040 |
15 |
|
|
TWRO-18000 |
TW-130K-3680 |
130,000 |
492 |
18,000 |
8040 |
18 |
|
|
TWRO-20000 |
TW-144K-4580 |
144,000 |
545 |
20,000 |
8040 |
20 |
|
|
TWRO-24000 |
TW-173K-4680 |
173,000 |
655 |
24,000 |
8040 |
24 |
|
Note: If the feed water TDS exceeds 2,000 ppm, the system model number changes to BWRO-XXXX ( BW-XXXK-XXXX) , and a suffix is added to the end of the model number: “-5” is added if the TDS is 5,000 ppm or less. Example: Required system to produce 1,500 LPH (9,000 GPD) with a feed water TDS of 5,000 ppm, the corresponding model number is: “BWRO-1500-5” (BW-9.0K-640-5).
Applications
|
Beverage Production and Bottled Water Boiler Feed Water Chemical Blending Cooling Towers EDI Pre-treatment Electronics Food and Beverage ... |
Ice Manufacturing Ion Exchange Pre-treatment Laboratory Metal Finishing Mining Industry Nitrate Removal from Water Pharmaceutical ... |
Plating Operations Power Plants Refinery Water Treatment Rinse Water Safe Drinking Water Storm Water Treatment Well Water Treatment ... |
