Fiberglass FRP Water Pressure Tank

FRP Tank is a kind of nonmetallic composite which is made of resin and fiberglass are made of high quality composite material HDPE liner,with blow molding technique, it provides continuous seamless inner liner shell. FRP tanks are widely used for RO system and softeners.FRP tanks are widely used in food, printing, chemical, pharmaceutical industries etc.

High Performance HDPE Liner Harmless to the human body Can work in low temperature, long life Can be filled with various filter materials	Made of Fiberglass FRP Shell Beautiful appearance Suitable for commercial and industrial water treatment Excellent corrosion resistance	Widely used places Media tanks for water and waste water purification treatment, such as media filters, water softeners, can be used in food environmental protection and other fields

Tight mouth design The FRP tank body is formed by winding glass fiber reinforced plastics, and the tank mouth adopts one-piece molding technology,with clear threads and a close fit.

Filling filter media selection Activated carbon: remove peculiar smell and enhance taste Ion exchange resin: reduce the hardness of raw water and solve the problem of scale Quartz sand: remove suspended solids in water and intercept large particles of impurities Manganese sand: remove manganese, iron and other elements

High Quality Epoxy Resin Tightly Wound FRP Tank is wound with high-quality epoxy resin, and is wound to the HDPE inner embryo by a tight process, which has a good pressure effect on the tank.	OEM Service and Colors Available We provide OEM service, please consult us for more details and color options.

Design pressure 150 Psi or 120 Psi

Adopt food grade HDPE as inner liner.

Epoxy resin + fiberglass winding reinforcement.

Precise thread for industry & civil use and flange connections.

Fatigue test: 250000 times.

Burst test: 4 times of its design pressure.

Max.Vacuum 127 mm Hg

Model: 0517-8079.

Working temperature: 1 °C - 49 °C (34°F - 120°F).

Feature

1.FRP tanks (844-1665) use 600 tex fiberglass, not 1200 tex fiberglass, with strong better pressure coefficient and safety factor.

2.The base of tank is made from pure raw material not secondary processed material. With good color, less impurities, good toughness, and environmental protection.

3. The ingredients are imported from USA.

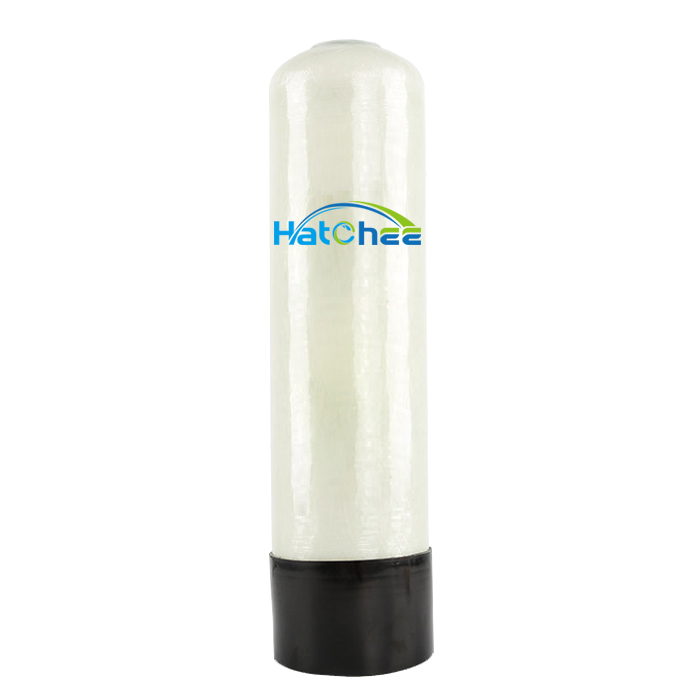

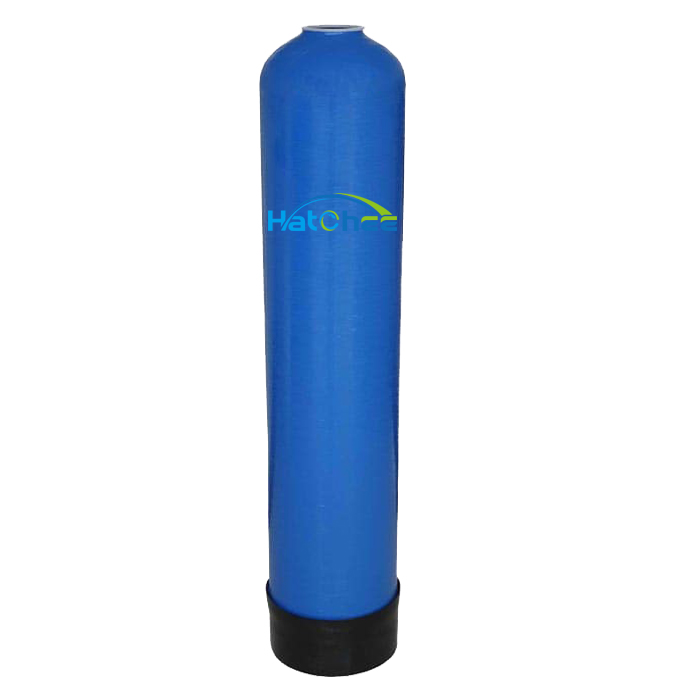

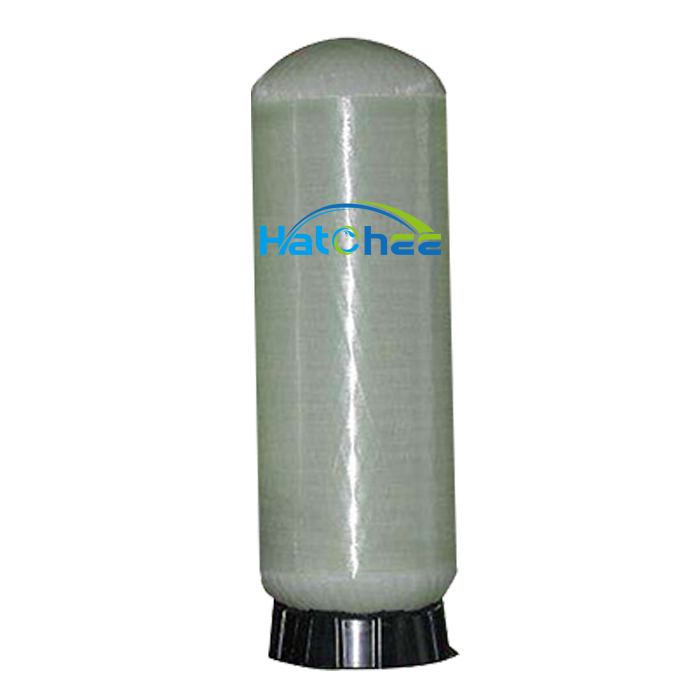

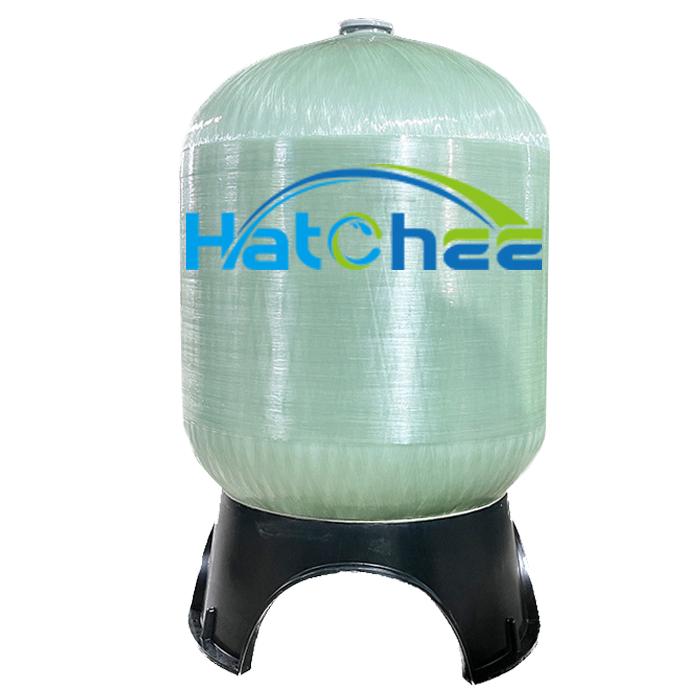

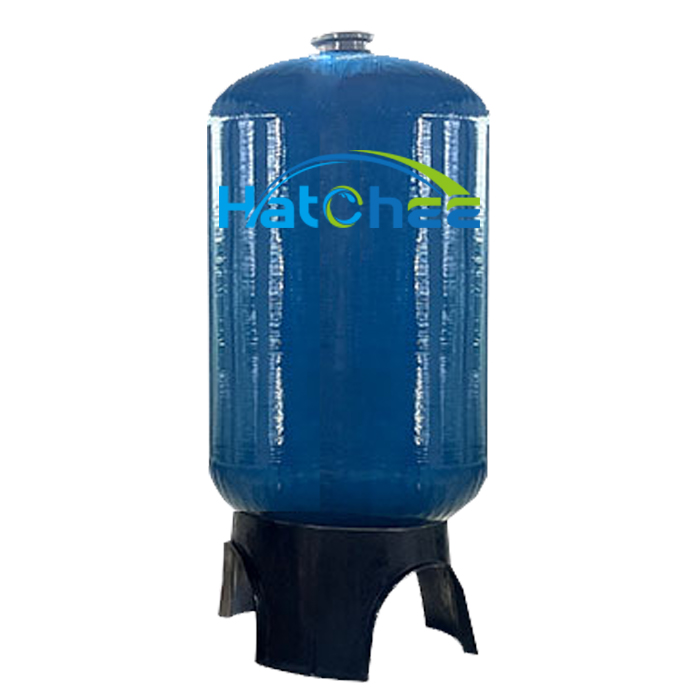

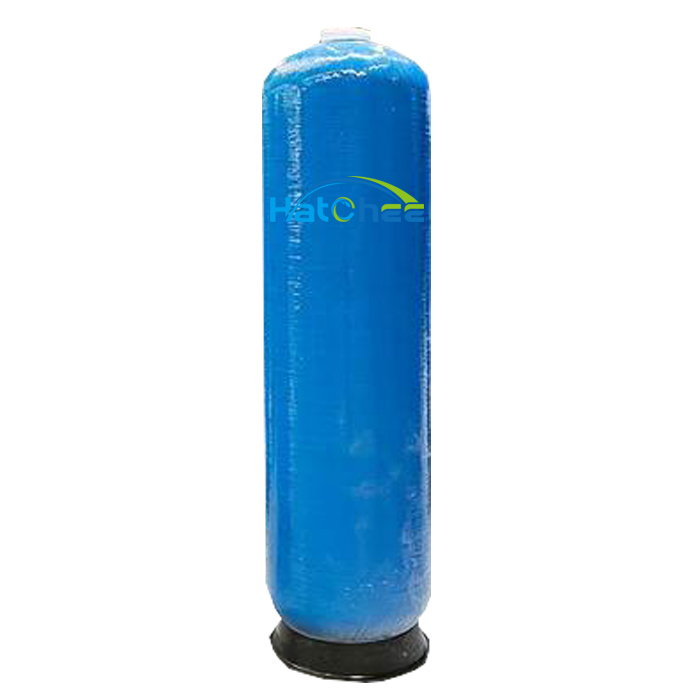

Product Show
